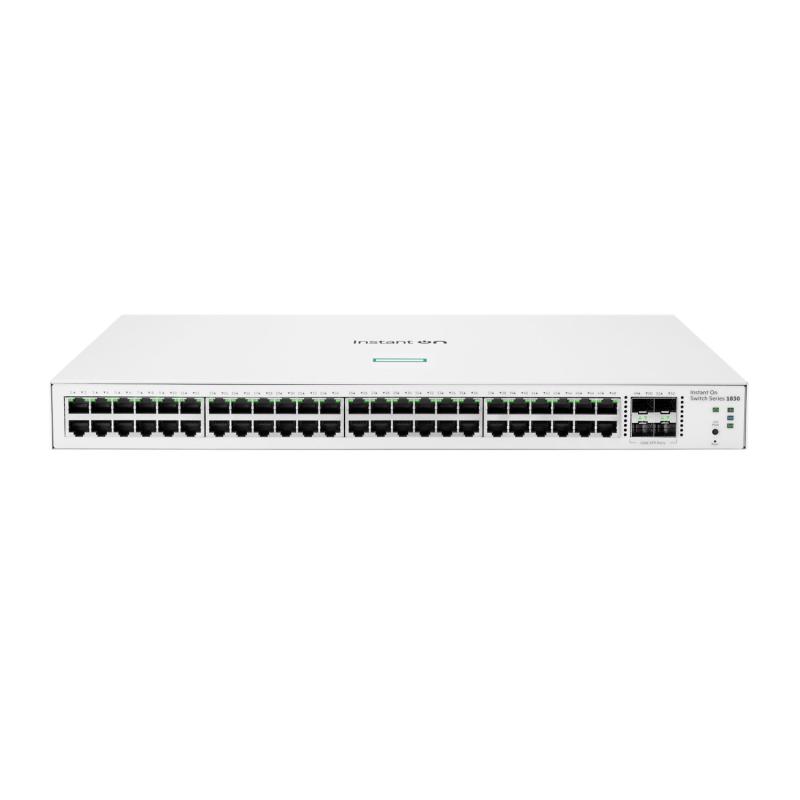

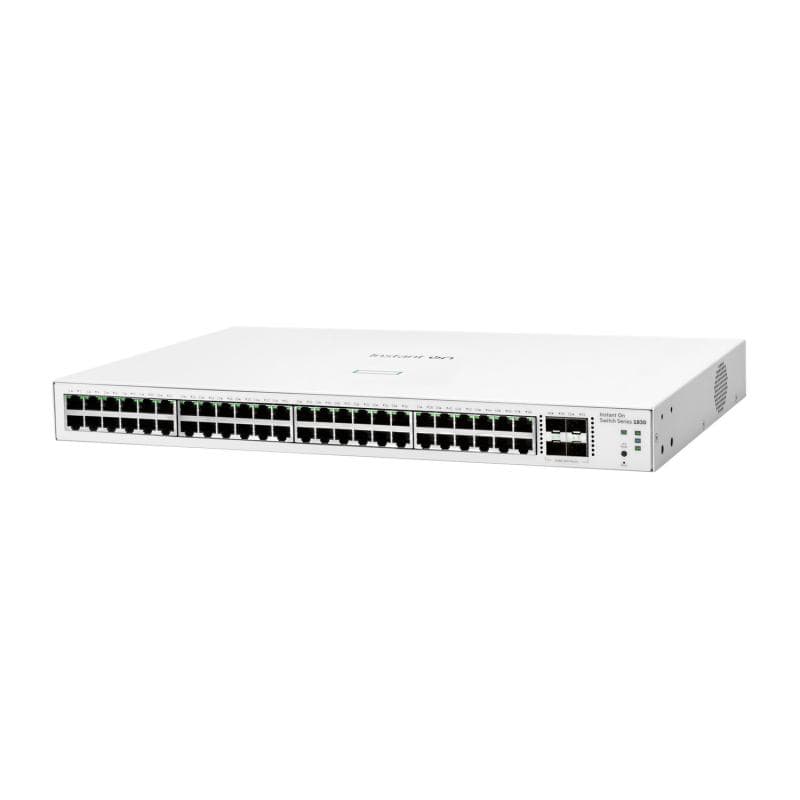

HPE Networking Instant On Switch 48p Gigabit 4p SFP 1830

<h4>Lifecycle</h4> <ul> <li><b>Obsolete Date</b> 31-12-2099</a></li> <li><b>End of support date</b> 31-12-2104</a></li> </ul> <h4>Specifications</h4> <ul> <li><b>Operating temperature</b> 0-40°C, 0-10,000 ft</li> <li><b>Ports</b> 48 RJ-45 10/100/1000 ports, 4 SFP 1GbE ports</li> <li><b>Management features</b> HPE Networking Instant On Cloud; Web browser; SNMP Manager</li> <li><b>Switching capacity</b> 104 Gbps</li> <li><b>PoE capability</b> -</li> <li><b>Memory and processor</b> ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB</li> <li><b>Warranty</b> Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.</li> <li><b>Power consumption</b> Maximum: 100-127V: 40.2W 200-220V: 40W; Idle: 100-127V: 17.7W 200-220V: 17.7W</li> <li><b>Input voltage</b> 100 - 240 VAC</li> <li><b>Product dimensions (metric)</b> 25.30 x 44.30 x 4.39 cm</li> <li><b>Product dimensions (imperial)</b> 9.96 x 17.44 x 1.73 in</li> <li><b>Weight</b> 7.80 lb</li> <li><b>Throughput</b> 77.37 Mpps</li> <li><b>Weight</b> 3.54 kg</li> </ul> <h4>Quickspecs</h4> <ul> <li><a href="##QUICKSPECS##" target="_blank">QuickSpecs</a></li> <li><a href="https://www.hpe.com/psnow/doc/a50004271enw.html?jumpid=in_pdp-psnow-qs" target="_blank">QuickSpecs (HTML)</a></li> <li><a href="##QUICKSPECS##" target="_blank">QuickSpecs</a></li> <li><a href="https://www.hpe.com/psnow/doc/a50004271enw.pdf?jumpid=in_pdp-psnow-qs" target="_blank">QuickSpecs (PDF)</a></li> </ul> <h4>Overview</h4> <p>HPE Networking Instant On Switch 1830 series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications. This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands. These entry-level, smart-managed switches offer Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.</p> <h4>What's new</h4> <ul> <li>Cost-effective PoE support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments.</li> <li>Option to manage your switches through local web GUI.</li> <li>Two and four dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.</li> <li>HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.</li> <li>Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments.</li> <li>Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models.</li> </ul> <h4>Features</h4> <p> <b>Gigabit Connectivity for Small Businesses</b><br /> <b>Simplify Network Deployment and Management</b></p> <p>The switches can be deployed using two management modes - HPE Networking Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.</p> <p>Energy-efficient cooling includes variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption.</p> <p>The HPE Networking Instant On Switch 1830 series has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity.</p> <p> <b>Better Energy Efficient Features for Reducing Environmental Footprint</b></p> <p>PoE Scheduling allows users to configure a specific day/time of the week (e.g. business hours) for Instant On switches to supply power to connected devices (e.g. surveillance cameras, access points, etc.).</p> <p>Features compact and fan-less 8-port and 24-port non-PoE models for acoustically-sensitive environments.</p> <p>8-port non-PoE switch can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.</p> <p>The HPE Networking Instant On Switch 1830 series features easy-to-use, out-of-the-box, plug-and-play deployment.</p> <p>Two and four dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.</p> <p>With PoE models, you get up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port, 24-port and 48-port PoE models come with the power budget of 65W, 195W, and 370W respectively to support latest IoT devices.</p> <p>HPE Networking Instant On Switch 1830 is a smart-managed Layer 2 Ethernet switch series ready to deploy in six models comprising of 8-, 24-, 48-port for non-PoE and Class 4 PoE models.</p> <p>The HPE Networking Instant On Switch 1830 series is enhanced with security features such as VLANs, automatic Denial-of-service protection, Global Storm Control, and TPM (Trusted Platform module) based security to guard your network from unwanted or unauthorized access.</p> <p>Class 4 PoE options allow power to devices like IP phones, surveillance cameras, and access points without the cost of additional cabling.</p> <p> <b>Keep Your Business Protected with Integrated Security Features</b></p> <p>Includes a Trusted Platform Module (TPM) for protected hardware-based generation and storage of cryptographic keys used for connection to the HPE Networking Instant On cloud portal.</p> <p>Global Storm Control protects against conditions where incoming packets flood the LAN, causing network performance degradation for unicast traffic with an unknown destination, and for broadcast and multicast traffic.</p> <h4>Documents</h4> <ul class="more-details documents"> <li class="document"><a href="https://assets.ext.hpe.com/is/content/hpedam/a50004271enw" target="_blank">HPE Networking Instant On Switch 1830 QuickSpecs</a></li> <li class="document"><a href="https://assets.ext.hpe.com/is/content/hpedam/a00119988enw" target="_blank">HPE Networking Instant On Switch Series 1830 Data Sheet</a></li> </ul>
