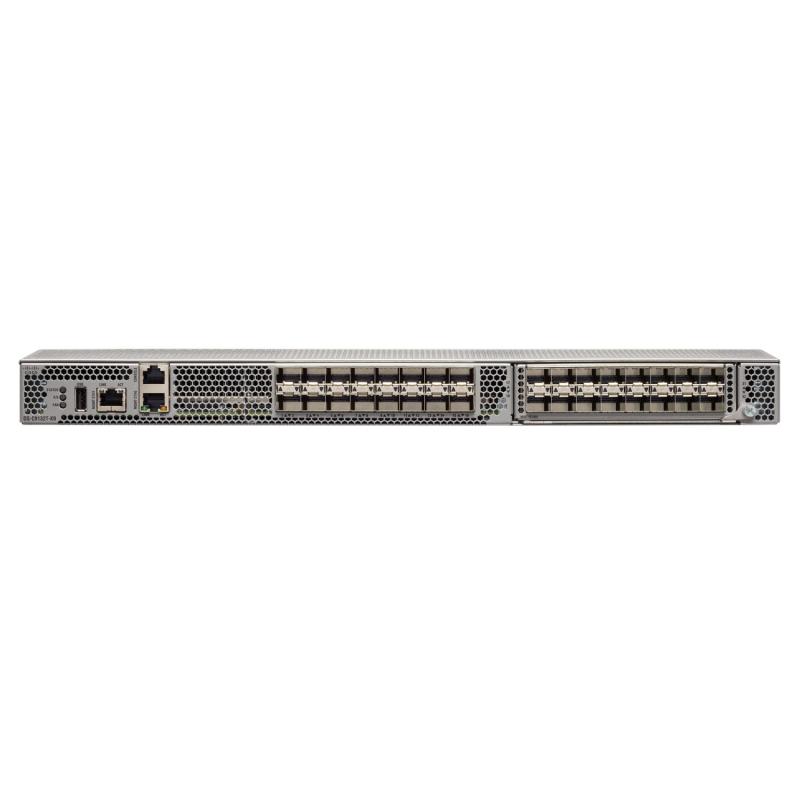

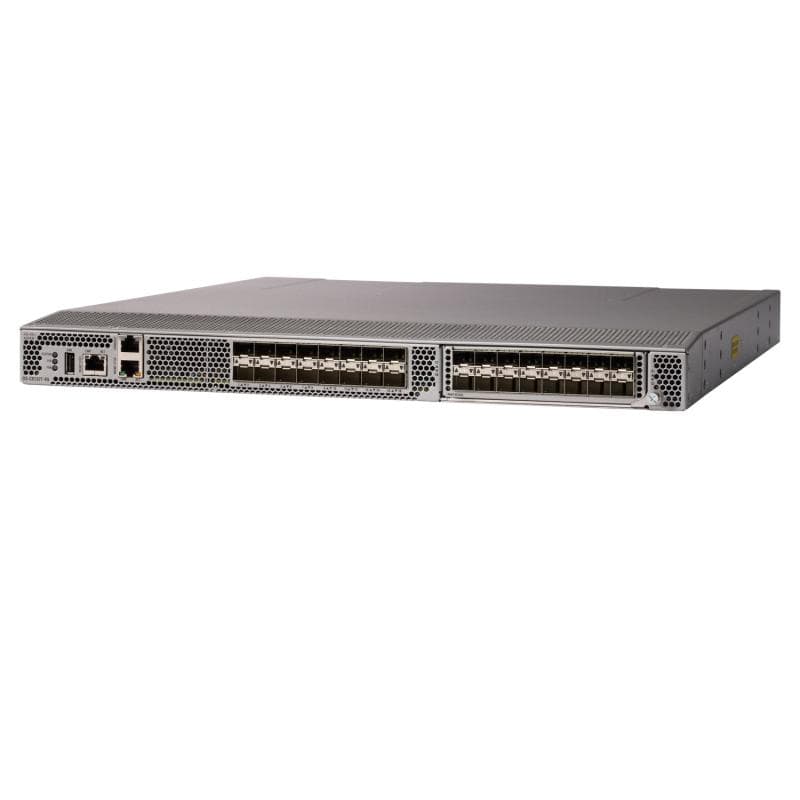

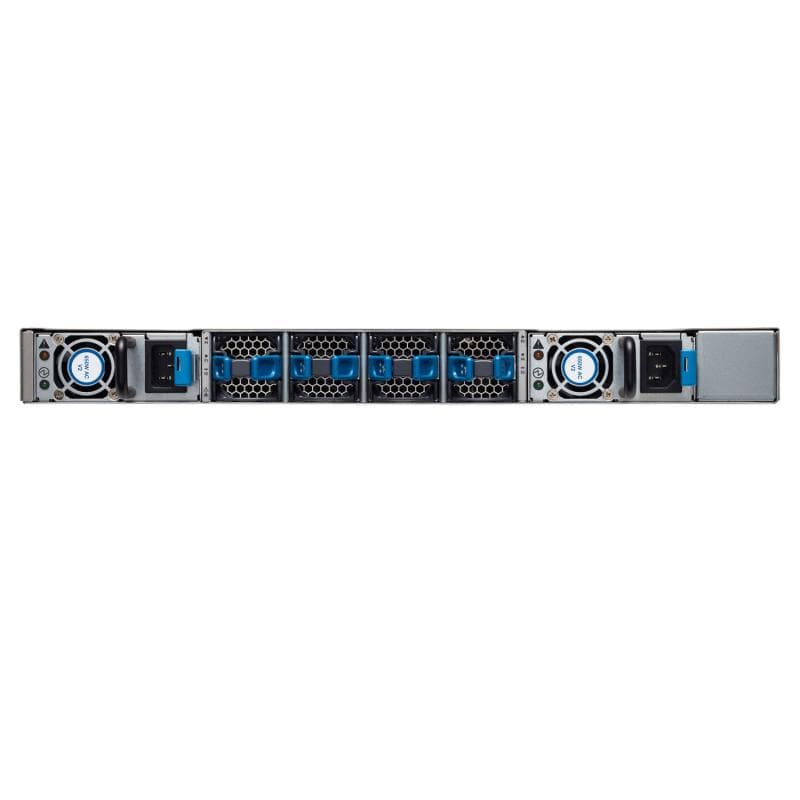

HPE SN6610C 32Gb 8-port 32Gb Short Wave SFP+ Fibre Channel

<h4>Lifecycle</h4> <ul> <li><b>Obsolete Date</b> 31-12-2028</a></li> <li><b>End of support date</b> 31-03-2030</a></li> </ul> <h4>Specifications</h4> <ul> <li><b>Management software</b> SMI-S compliant; Command Line Interface (CLI); Cisco DCNM/NDFC web services API</li> <li><b>Product dimensions (imperial)</b> 1.72 x 17.3 x 20.11 in</li> <li><b>Media types</b> Supports 32Gb, 16Gb, and 8Gb transceivers</li> <li><b>Availability features</b> Non-disruptive software upgrades, hot-swappable and dual redundant power supplies, hot-swappable fan module, hot-swappable SFP+ optics, stateful process restart</li> <li><b>Software (optional)</b> Port upgrade license, Enterprise Package license, Cisco Data Center Network Manager (DCNM) license, SAN Insights (1, 3, 5 years), Advantage license (1, 3, 5 years), and Premier license (1, 3, 5 years)</li> <li><b>Form factor</b> 1U</li> <li><b>Upgradability</b> Activate additional ports using 8 port upgrade license</li> <li><b>Warranty</b> The Hardware Warranty is 1-year parts, 1-year on-site (standard business hours, next business day response) and 1-year labor. For more information, refer to the HPE website at https://hpe.com/support.</li> <li><b>Aggregate switch bandwidth</b> 1024 Gbps, maximum</li> <li><b>Protocol supported</b> Fibre Channel</li> <li><b>Port speed</b> 32 Gb</li> <li><b>Weight</b> 9.1 kg with 16 activated ports 9.82 kg with 32 activated ports</li> <li><b>Encryption capability</b> SNMP V3 implementing AES, Cisco TrustSec payload encryption</li> <li><b>Ports</b> 8-port active with 8 32Gb SW transceivers</li> <li><b>Weight</b> 20.06 pounds with 16 activated ports 21.65 pounds with 32 activated ports</li> </ul> <h4>Quickspecs</h4> <ul> <li><a href="https://www.hpe.com/psnow/doc/a00045561enw.pdf?jumpid=in_pdp-psnow-qs" target="_blank">QuickSpecs (PDF)</a></li> <li><a href="##QUICKSPECS##" target="_blank">QuickSpecs</a></li> <li><a href="##QUICKSPECS##" target="_blank">QuickSpecs</a></li> <li><a href="https://www.hpe.com/psnow/doc/a00045561enw.html?jumpid=in_pdp-psnow-qs" target="_blank">QuickSpecs (HTML)</a></li> </ul> <h4>Overview</h4> <p>Are you looking for a high performance Fibre Channel switch for the modern storage area network? The HPE Storage Fibre Channel Switch C-series SN6610C delivers 32 Gbps Fibre Channel (FC) switching providing high-speed FC connectivity from the server rack to the SAN core. It empowers midsize, enterprise, and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the dual benefits of greater bandwidth and consolidation. The switch offers state-of-art analytics and telemetry capability built into its ASIC platform. For increased flexibility, the HPE Storage Fibre Channel Switch C-series SN6610C scales from 8 to 32 ports. Additionally, investing in this switch for the lower-speed (8 or 16 Gbps) server rack gives you the flexibility to upgrade to 32 Gbps performance in the future.</p> <h4>What's new</h4> <ul> <li>New subscription-based Advantage and Premier license bundles with Cisco Data Center Network Manager (DCNM) / Cisco Nexuas Dashboard Fabric Controller (NDFC), Enterprise and SAN Analytics.</li> </ul> <h4>Features</h4> <p>HPE Storage Fibre Channel Switch C-series SN6610C provides consistent 32 Gbps low-latency performance across every FC port on the switch.</p> <p>HPE C-series SAN Insights (Cisco SAN Analytics) delivers deep visibility into I/O traffic between the compute and the storage infrastructure. This information is in addition to the already-available visibility obtained from individual ports, switches, servers, virtual machines, and storage arrays.</p> <p>Starting NX-OS 9.2(1), DCNM is renamed as Cisco Nexus Dashboard Fabric Controller (NDFC).</p> <p> <b>Intelligent Network Services for Modern SAN</b></p> <p>Lower initial investment and power consumption for entry-level configurations of up to 8 ports compared to a fully loaded 32 port switch.</p> <p>Configurable with 16 Gb FC SFP+ or 32 Gb FC SFP+ optics to accommodate your budget while being fully prepared for tomorrow.</p> <p>Delivers increased performance with an aggregate bandwidth of 1024 Gbps for growing and dynamic workloads.</p> <p>Delivers the same outstanding availability and reliability as previous generation HPE Storage Fibre Channel Switch C-series SN6610C by providing optional redundancy on all major components such as power supplies and fans.</p> <p>Provides visibility into each virtual machine logged into the fabric through HBAs capable of priority tagging the Virtual Machine Identifier (VMID) on every FC frame.</p> <p>On-board hardware that protects the entire system from malicious attacks by limiting access to critical components such as the bootloader, system image loader and Joint Test Action Group (JTAG) interface.</p> <p>Cisco Data Center Network Manager (Essentials Edition) software, included with switch, provides a centralized management tool with task-based wizards. Additional advanced features are available with the DCNM / Cisco Nexus Dashboard Fabric Controller (NDFC) licensed version, sold separately.</p> <p>The HPE Storage Fibre Channel Switch C-series SN6610C provides intelligent diagnostics tools such as inter-switch link diagnostics, read diagnostic parameters, protocol decoding, network analysis tools, and others for improved reliability, faster problem resolution, and reduced service costs.</p> <p>Consolidate separate physical SAN fabrics into one large fabric for ease of management and reduced total cost of ownership.</p> <p> <b>Easy Manageability</b></p> <p>Provides powerful Representational State Transfer (REST) and NX-API capabilities to enable flexible and rapid programming of utilities for the SAN.</p> <p>The VSAN technology provides a cost-effective way to consolidate resources while providing high resiliency to potential fabric disruptions.</p> <p>The HPE Storage Fibre Channel Switch C-series SN6610C supports slow-drain detection and isolation, VSAN technology, access control lists for hardware-based intelligent frame processing, smart zoning, and other various services.</p> <p>The HPE Storage Fibre Channel Switch C-series SN6610C  provides an option to deploy as few as eight 32 Gbps Fibre Channel (FC) ports which can grow from 8 ports to 16 ports, and thereafter with a port expansion module. Expanding up to a maximum of 32 ports.</p> <p> <b>Investment Protection</b><br /> <b>High Performance for NVMe/All-flash Arrays and Virtualized Workloads</b></p> <h4>Media</h4> <p> <b>Redefine HPE Storage Networking</b></p> <p>A wide range of storage area network products and solutions that meet any customer requirements for performance, cost, scalability, manageability and investment protection.</p> <div class="center-aligned media"></div> <h4>Compatible products</h4> <ul class="more-details compatible-products"> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=AJ906A">HPE MDS 9000 8Gb FC SFP+ Short Range Transceiver</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=AJ834A">HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=QK733A">HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=AJ839A">HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=AJ837A">HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=QK729A">HPE Premier Flex MPO/MPO OM4 8f 10m Cbl</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=AJ836A">HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=AJ833A">HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=AJ835A">HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=QK731A">HPE Premier Flex MPO/MPO Multi-mode OM4 8 Fiber 50m Cable</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=U5988E">HPE Install Storage Switches SVC</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=QK736A">HPE Premier Flex LC/LC OM4 2f 30m Cbl</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=Q9D30A">HPE C-series 32 Gb Fibre Channel Short Wave SFP+ Transceiver</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=C8S72A">HPE C-series 16 Gb Fibre Channel SW SFP+ Transceiver</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=QK732A">HPE Cablu Server HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=QK737A">HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=AJ838A">HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=QK734A">HPE Cablu storage Server Premier Flex LC/LC Multi-mode OM4 2 Fiber 5mCable</a></li> <li class="cross-sell"><a href="https://b2b.nod.ro//products/product/?code=QK735A">HPE 1U Autoloader Rack Kit</a></li> </ul> <h4>Documents</h4> <ul class="more-details documents"> <li class="document"><a href="https://assets.ext.hpe.com/is/content/hpedam/a00045561enw" target="_blank">HPE Storage Fibre Channel Switch C-series SN6610C QuickSpecs</a></li> <li class="document"><a href="https://assets.ext.hpe.com/is/content/hpedam/a50011525enw" target="_blank">HPE Virtual Connect SE 100Gb F32 Module for Synergy – Flat SAN technical reference</a></li> <li class="document"><a href="https://assets.ext.hpe.com/is/content/hpedam/a50009552enw" target="_blank">HPE Storage Networking – Best practices for managing data center cabling</a></li> <li class="document"><a href="https://assets.ext.hpe.com/is/content/hpedam/a00039055eew" target="_blank">West London College basis future growth on HPE technology</a></li> </ul>
